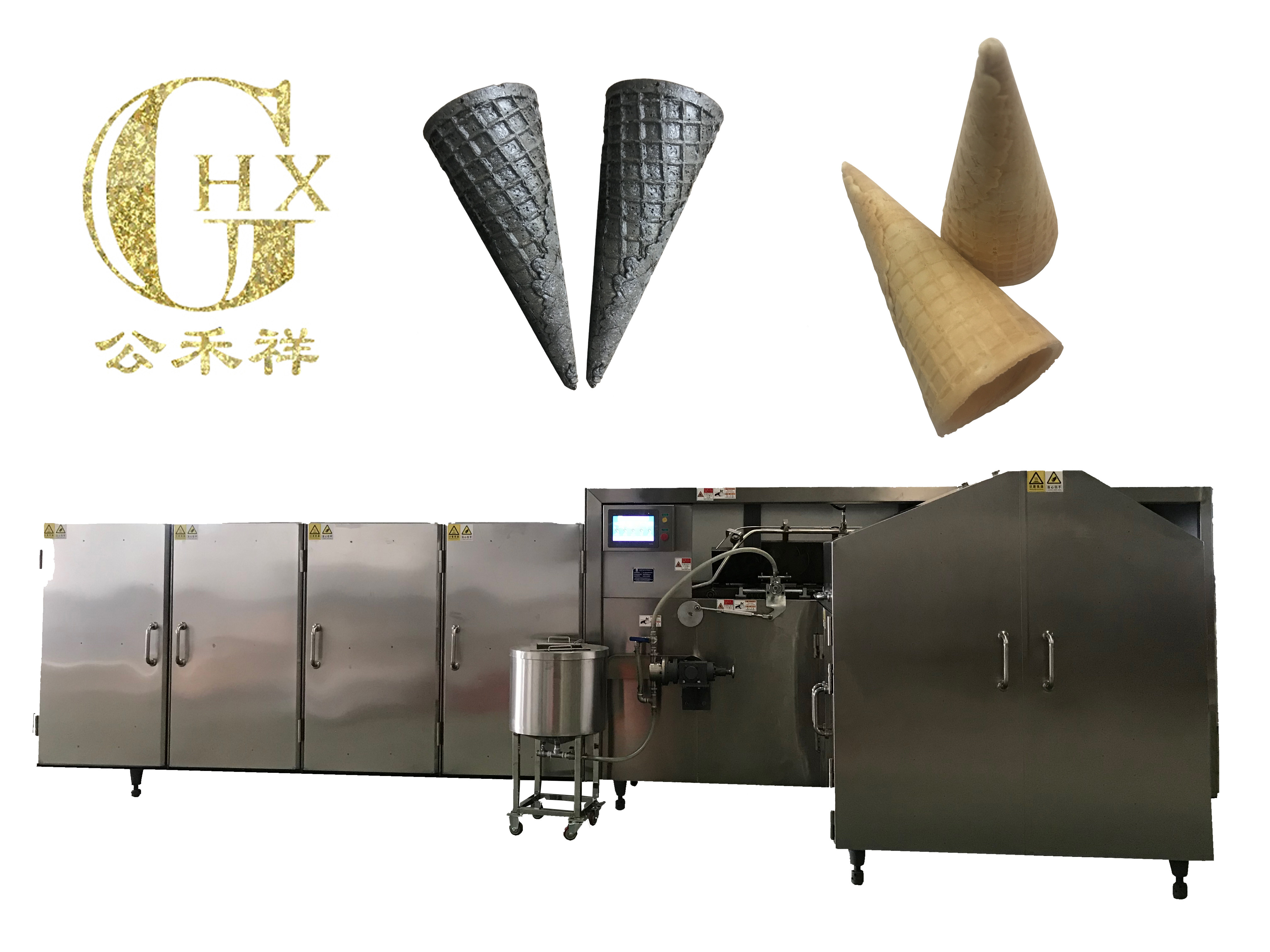

SD80-45x2 automatic ramp sweet cone baking machine
Full automatic commercial ice cream sugar rolled cone baking
machine
Product details:
The stirred dough is sent to the baking plate bottom plate by the
blanking pump, and the panel of the baking plate is automatically
closed, and the dough cake is shaped according to the thickness of
the set cake, and then the rotating plate is turned into a baking
plate. It is baked in an oven consisting of upper and lower fire
nozzles. After baking, the noodle paste has become a dough cake.
The robot cake accurately feeds the dough cake into the roll mold
and rolls it into a finished product. The finished product is
delivered.
Features of Ice Cream Cone Making Machine
Different size,angle,thickness,depth ice cream cone can be
customized.
Full automatic filling paste,baking,rolling and conveying-counting.
Double Layered Panel Door. It reduces heat loss from the oven,
saving energy and keeping the panel cool.
Gas system. Auto ignition system is installed. Special design
nozzle to give clear blue flames and increase energy efficiency.
Universal burner allow LPG, natural gas and some other type fuel.
The machines have characteristics with energy-saving, safety,
sanitation, high capacity and easy operation. Meanwhile, we can
design and make different models according to the requirements from
different customers.
Model:SD80-45x2
Voltage: 380V
Total Power: 3.37 kw
LPG consumption: 8-10kg/h
Capacity: 4000-5000 pcs/h
Dimension: L8.7xW2.1xH1.8m
Net weight: 5000kg
Controller: Schneider

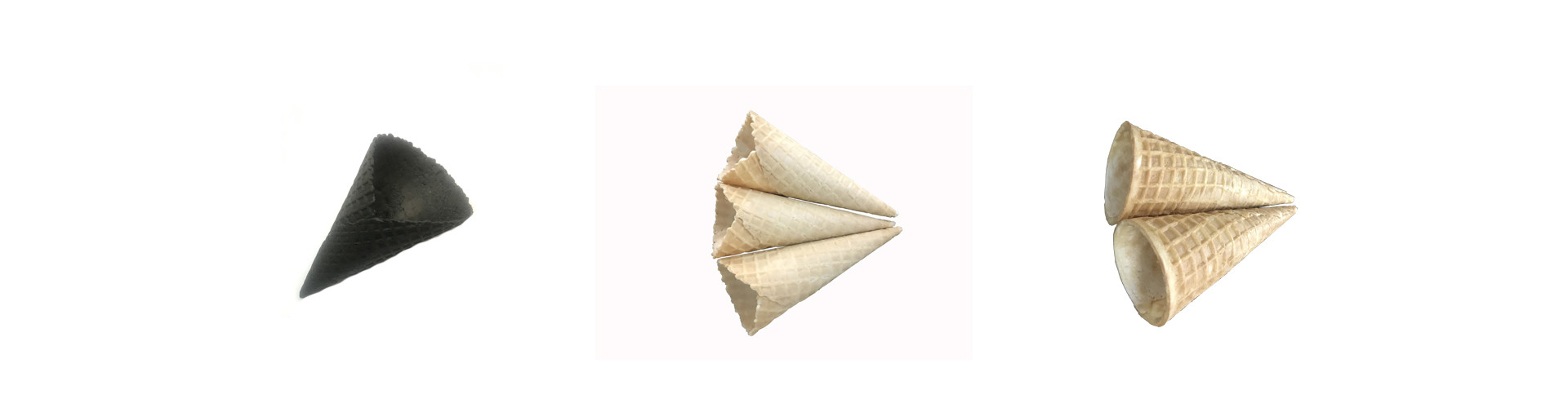

The size of the finished cones is within 145mm long can be
customized according customer’s requirements, such as
angle,width,depth,figure and thickness.
Electric heating and gas heating can be choosen from.
Ice Cream Cone Making Machine Advantage:
1.Temperature adjustable
2.High-efficient heating element ensures ideal production ability.
3.Different types of mould according to your choice.
4.A relay unit controls baking time.
Packaging & Shipping
1. We always use standard export wooden packing,carton box.
2. You can choose express, by air,by train or by sea.Always we will
give our best recommend based on our experience.
3. We cooperate with China best shipping company to get best price
and fast delivery.
4. You will get full feedback when your machine is on the way.
