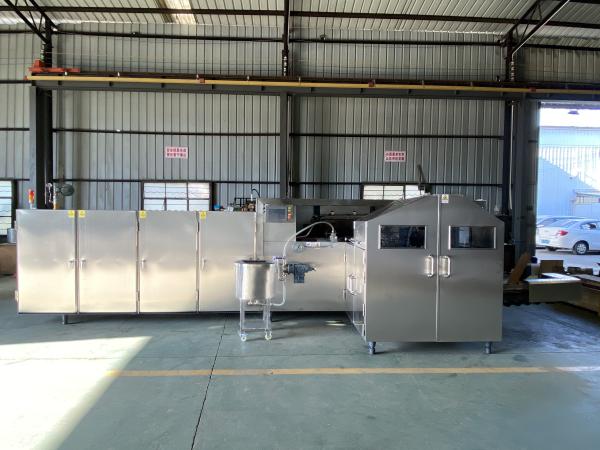

SD80-45x2 304 Stain Steels Full Automatic Ramp Sweet Cone Baking Machine

Working principle:

The whole machine is controlled by schneider PLC, through the main motor startup, roll machine, fan starts, gas start, and the igniter is automatically ignited to heat the baking plate of the machine.Until the temperature shows about 180 degrees,The mixed dough is sent to the bottom plate of the baking plate by the dosing pump, and the panel of the baking plate is automatically closed.The dough is shaped according to the set thickness of the dough, and then the baking plate is driven by the active wheel. Transfer to an oven consisting of upper and lower fire mouths, etc.After baking, the pasta has become a pastry, and the dough is accurately put into a rolling mold by a manipulator it into a finished product, and the finished product is sent out after demolding.

Features of ice cream cone production line:

1. Automatic wafer baking oven equipped with Touch-screen and programmed by Siemens. PLC Software,this unit is of natural gas to generate the heat energy to make ice cream cone.

2. The equipment is easy to operate which with automatic temperature control,lighting to finish the baking process.

3. From filling flour paste to get a ice cream cone just need 2mins,one time molding.High efficiency.

Model:SD80-45x2

Voltage: 380V

Total Power: 3.37 kw

LPG consumption: 8-10kg/h

Capacity: 4000-5000 pcs/h

Dimension: L8.7xW2.1xH1.8m

Net weight: 5000kg

Description of the Electrical accessories

Electrical accessories: Schneider

Controller: Schneider

Working Process of biscuit cone machine
Full automatic filling paste,baking,rolling and conveying-cooling-counting.
The same machine can make different products within round biscuit,sugar rolled cone, egg roll with changing the different forming devices.
The size of the finished cones is within 145mm long can be customized according customer’s requirements, such as angle,width,depth,figure and thickness.
Electric heating and gas heating can be choosen from.

FAQ

1. Ask:What is your guarantee of machine ?

Answer:usually our guarantee is 1 years.

2. Can you arrange your technicians to install the machine for us?

Answer:Yes,We will assign our engineers to go abroad for installing machines for our users.

3. Ask:how to install the machine ?

Answer:we can intrust the install the machine by vedio,email,picture.....if large project,we can arrange the worker help you to install it in your country .

Exhibition::

Guangzhou Jianxiang Machinery Co., Ltd. has more than 20 years of experience in the production of mechanical products. Now the company has strong technical force, advanced equipment and normative management after many years of struggle and technology accumulation. Our business partner Guangzhou GongHeXiang Machinery Co., Ltd, is the most famous automatic sugar cone baking machine manufacturer in China. The sugar cone baking machine and batter mixer we produce for GongHeXiang had been sold to over 20 provinces in China and exported to many oversea countries like Russia, Kyrgyzstan, Uzbekistan, Turkey, Argentina, Vietnam, Syria, French Polynesia, Egypt, Peru, India etc.

We have professional production equipment and production team, specializing in manufacturing processes such as milling machines and grinders for more than ten years​

In order to meet market needs and customer’s demand, we developed new model SD80-37X2、 SD80-45X2 and SD80-53X2 of the SD80 series.SD80 series are the most advanced caterpillar track type baking machine . Besides the most regular SD80 sugar cone baking machine,TT25、 TT26 series are electric baking machine which include modelTT25、TT26-45, TT26-40, TT26-36 and TT26-30.

Different machine can meet your different requirement for sugar cone size and your demand for production capacity. After so many years of development, our company had truly become the most professional sugar cone baking machine manufacturer in China.

Customer first, quality first and user-oriented is key to our service. Our company always provide customer with high quality product and good service and we will constantly strive for excellence. We believe our reasonable offer and thoughtful after-sales service can allow users achieve a real “buy peace of mind was at ease with”. We warmly welcome both new and current customer to call for further inquiry or to come and discuss cooperation.
