    Industrial Baking Ice Cream Waffle Cone Making Machine

    Ask Lasest Price
    Brand Name : Gonghexiang
    Model Number : TT25
    Certification : ISO
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : Sufficient supply
    Delivery Time : 30-45DAYS
    • Product Details
    • Company Profile

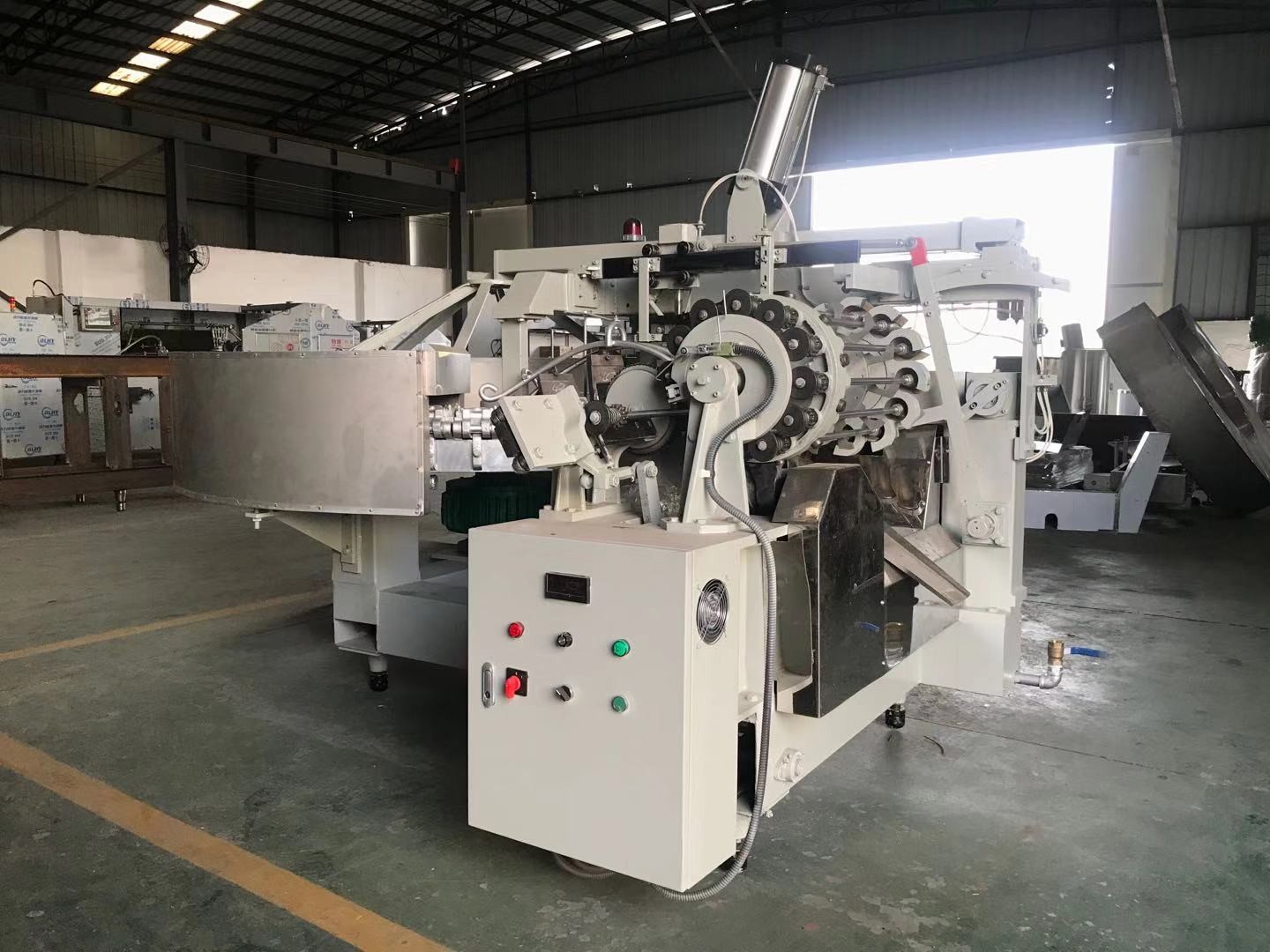

    Industrial Baking Ice Cream Waffle Cone Making Machine

    TT25 High capacity full automatic ice cream cone wafer making production line


    Industrial Baking Ice Cream Waffle Cone Making Machine


    PRODUCT PARAMETERS :


    ModelTT25
    Voltage380V
    Total Power1.5Kw
    Gas consumption4Kg/h (4.2m³/h)
    Compressed air pressure0.6MPa
    Weight3000Kg
    Dimension of machine (mm)3200*2700*1900
    Product dimension (22.5degree)Diameter42-48mm
    Length100-115mm
    Capacity2500pieces/h
    Product dimension (17.5degree)Diameter38-44mm
    Length110-125mm
    Capacity2500pieces/h

    The main features:


    1. Produced by the crisp and delicious products, uniform color.
    2. Heating temperature automatically adjusts, uses the thermostat, the temperature control is accurate.
    3. Automatic feeding, adjustable amount of material, and the adjustment is simple.
    4. Using a special process, non-stick layer heating plate
    5. The overall use of stainless steel frame welded pipe, never rust, easy to clean.
    6. Mold can be customized to meet different need.


    Model No.Gas type
    TT25TT25-40TT25-36TT25-30
    Voltage380V380V380V380V
    Power1.5Kw1.5Kw1.5Kw1.5Kw
    Gas consumption4Kg/h (4.2m³/h)4Kg/h (4.2m³/h)5Kg/h (5.5m³/h)5Kg/h (5.5m³/h)
    compressed air pressure0.6MPa0.6MPa0.6MPa0.6MPa
    Total weight3000Kg3000Kg3000Kg3000Kg
    Dimension(mm)3200x2700x19003200x2700x19003200*2700*19003200x2700x1900
    Cone size(22.5°)Capacity2300-2500pcs/h2200-2400pcs/h2000-2200pcs/h1500-2000pcs/h
    Cone size(17.5°)Capacity2500pcs/h//

    Industrial Baking Ice Cream Waffle Cone Making Machine
    Package:


    Industrial Baking Ice Cream Waffle Cone Making Machine


    Certification:

    Industrial Baking Ice Cream Waffle Cone Making Machine


    After Sale Service

    1. Warranty policy one year from shipment
    2. We will send you the replacement after received the broken part
    3. Evaluate the customs rish and choose safest shipping company before shipping.
    4. Follow status up time by time until the goods arrived.
